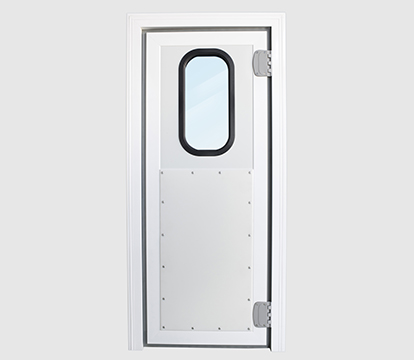

Rigid swing refrigerating door

Rigid swing refrigerating door

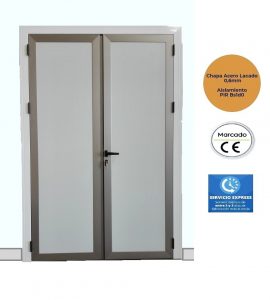

Refrigerating door designed specifically for the separation of work rooms or refrigerated warehouses. It has a specific design that integrates itself very well into installations with a sandwich panel. It can have 1 or 2 sheets.

Refrigerating door that stands out for its excellent quality and finish. It complies with the sanitary standards and the expected benefits for this type of refrigerating doors.

Options:

  • Lock with key.
  • Sheet protection in lower area in checkerboard aluminum, stainless steel or 5mm polyethylene.
  • Protection of aluminum wing type sheet of 5mm or 3mm stainless steel.
  • Various finishes in lacquered sheet metal (blue, red, green, gray, etc.), stainless steel, PVC, polyester, etc.

Sheet
High density polyurethane foam (45/50 kg / m3) with fire classification Bs2d0. Galvanized steel sheet lacquered by both sheets and thickness of 0.6mm. Reinforced and edged around its perimeter with an extruded aluminum profile with stainless steel finish and high resistance to corrosion treatment.


Thickness
40mm

Frame
Frame and counter frame in white lacquered extruded aluminum. Treatment with high resistance to corrosion, fixed with hidden screws adaptable to different thicknesses.

Fitting
Double-action gray composite stainless steel hinges. Stainless steel shaft with 90º retention. Screws totally manufactured in stainless steel.
